Demystifying ASLR: Understanding, Exploiting, and Defending Against Memory Randomization

30 min read6 days ago

Disclaimer:
The code and techniques provided in this blog are intended for educational purposes only. They are designed to help individuals understand the underlying principles of cybersecurity, ethical hacking, and software development. Under no circumstances should the information or code be used for unauthorized access, illegal hacking, or any activities that violate the law.
The author and publisher do not endorse or condone any illegal activities, and they will not be held responsible for any misuse of the information provided. By reading this article, you agree to use the information solely for lawful and ethical purposes.

ASLR stands for Address Space Layout Randomization, a security technique designed to prevent predictable memory layout in running processes.

Goal: To randomize the memory addresses used by system components such as stack, heap, shared libraries, and executables.
Why: Attackers often exploit software vulnerabilities by jumping to predictable memory locations (e.g., return addresses or shellcode). By randomizing these locations, ASLR makes it difficult to predict where to target.

How It Works:

When a process starts:

ASLR shifts memory segments to random addresses.
These segments include the stack, heap, shared libraries, and sometimes the executable itself.
Each run of the program has a different memory layout, making the memory addresses non-deterministic.

Low-Level Technical Details

Entropy in ASLR:
The number of possible memory locations ASLR can choose from is known as entropy.

On a 32-bit system: Limited to ~16 bits of entropy (because of smaller address space).
On a 64-bit system: Higher entropy (~28–48 bits depending on OS), making it significantly harder to guess memory locations.

Memory Segments Affected:

Stack: Function call frames, local variables, etc.
Heap: Dynamically allocated memory.
Shared Libraries: DLLs or .so files used by the program.
Executable Base Address: Where the program’s instructions are loaded.

Randomization Algorithm:

Relies on a pseudo-random number generator seeded during process creation.
Each segment is offset by a random value within a certain range, defined by the operating system.

Why Is ASLR Important?

Defense Against Exploits:

Makes techniques like buffer overflow and stack smashing harder to execute since attackers cannot predict where their payload will land.

Increased Exploitation Cost:

Attackers may need to brute-force memory addresses, increasing the likelihood of crashes and detection.

Let’s take a practical example to illustrate how ASLR randomizes memory locations. We’ll examine a sample process on a Linux system.

Step 1: Running the Process

We’ll execute the bash shell multiple times and observe the memory layout using the pmap command, which shows the memory map of a running process.

# Run bash and get its process ID
$ bash
$ echo $$  # Outputs the process ID, e.g., 12345

# View the memory map
$ pmap 12345

Step 2: Observing Randomized Memory Segments

A typical pmap output for a process with ASLR enabled might look like this:

12345:   bash
00400000   64K r-x-- /usr/bin/bash
00600000    4K r---- /usr/bin/bash
00601000    4K rw--- /usr/bin/bash
00c8f000  132K rw--- [ anon ]
7f6c8a000000 135K r---- /lib/x86_64-linux-gnu/libc.so.6
7f6c8a021000   8K rw--- /lib/x86_64-linux-gnu/libc.so.6
7f6c8a030000  12K rw--- [ anon ]
7ffd3c10a000  132K rw--- [ stack ]
7ffd3c1cc000    8K r---- [ vvar ]
7ffd3c1ce000    8K r-x-- [ vdso ]
ffffffffff600000    4K r-x-- [ vsyscall ]

Key Observations

Executable Base Address:

The starting address of /usr/bin/bash (00400000) remains fixed. Some OSs randomize this for PIE (Position-Independent Executables).

Heap Randomization:

The heap starts at a random address (00c8f000). Repeated runs of the process will change this location.

Shared Libraries:

Libraries like libc.so.6 are loaded at randomized addresses (7f6c8a000000).

Stack Randomization:

The stack begins at a random address (7ffd3c10a000), and this location changes for every new process.

Step 3: Running the Process Again

After exiting the current bash shell, run a new instance of bash and observe the memory map again using the same commands.

Expected changes:

The heap, stack, and shared library addresses will differ.

Understanding ASLR Randomization

Run 1 (`pmap` output):

00c8f000  132K rw--- [ anon ]      # Heap
7ffd3c10a000  132K rw--- [ stack ] # Stack

Run 2 (`pmap` output):

00e00000  132K rw--- [ anon ]      # Heap
7ffe1c200000  132K rw--- [ stack ] # Stack

Differences Observed

The heap base moved from 00c8f000 to 00e00000.
The stack base moved from 7ffd3c10a000 to 7ffe1c200000.

Why This Matters for Security

Randomized Addresses:
Attackers can no longer hardcode memory addresses to exploit vulnerabilities (e.g., redirecting execution to shellcode or library functions).
Increased Effort to Exploit:
Without knowing the exact addresses of critical regions (like stack, heap, or libraries), attackers are forced to guess, leading to crashes and alerting defenses.

Low-Level Implementation of ASLR

Let’s dive into the low-level implementation of ASLR and understand how operating systems enable memory randomization step by step. We’ll focus on key system components and mechanisms involved, followed by a practical example.

1. Program Loader

The program loader (part of the OS) is responsible for preparing a program for execution.
During this process:
The loader allocates memory for the program’s various segments (text/code, data, stack, heap, libraries).
ASLR adds random offsets to these allocations before the process starts.

2. Role of the Kernel

The kernel generates random values for memory base addresses:
These values are derived from a random number generator (RNG).
The seed for the RNG is typically initialized during boot, ensuring randomness across reboots.

3. Position-Independent Code (PIC)

For ASLR to randomize the code segment, the executable must be compiled as position-independent code (PIE).
PIE ensures that the program can execute correctly regardless of its load address.
Without PIE, ASLR cannot randomize the base address of the executable.

4. Virtual Memory Layout

Each process has its own virtual address space, managed by the OS:
The OS maps virtual addresses to physical memory, allowing ASLR to shuffle virtual addresses without affecting physical memory usage.
This is achieved through page tables.

5. Randomization Granularity

Memory is allocated in pages (typically 4 KB).
ASLR shifts memory locations by random multiples of the page size.

How Randomization Happens

Stack: The stack pointer (RSP or ESP) is initialized to a random offset within a predefined range.
Heap: The starting address for dynamic memory allocation (brk or mmap) is randomized.
Shared Libraries: The loader uses mmap to load libraries at random addresses.
Executable: If compiled with PIE, the code’s base address is also randomized.

Practical Example

Inspecting Memory Randomization in Linux

Check ASLR Status The kernel ASLR setting can be found in /proc/sys/kernel/randomize_va_space:

$ cat /proc/sys/kernel/randomize_va_space

Output:

0: No ASLR.
1: Partial ASLR (randomizes stack, heap, libraries, but not executable).
2: Full ASLR (randomizes all segments, including PIE executables).

Run a PIE Executable Compile a simple program as PIE:

// hello.c
#include <stdio.h>
int main() {
    printf("Hello, ASLR!\n");
    return 0;
}

Compile

$ gcc -fPIE -pie hello.c -o hello

Observe Memory Layout Run the program multiple times and inspect its memory map:

$ ./hello
$ cat /proc/$(pgrep hello)/maps

Example Output (Run 1):

55f8c2b9c000-55f8c2b9d000 r-xp /path/to/hello
7f8c4d7e4000-7f8c4d9e4000 r-xp /lib/x86_64-linux-gnu/libc.so.6
7fffbb9e4000-7fffbb9f8000 rw-p [stack]

Example Output (Run 2):

5632c7d12000-5632c7d13000 r-xp /path/to/hello
7f3f1a2b9000-7f3f1a4b9000 r-xp /lib/x86_64-linux-gnu/libc.so.6
7fffcba12000-7fffcba26000 rw-p [stack]

Key Observations

The executable (hello), libraries (libc), and stack addresses differ across runs.
The heap, if dynamically allocated (e.g., using malloc), would also be randomized.

Debugging Randomization

To see ASLR in action, use GDB:

$ gdb ./hello

Set a breakpoint and inspect memory locations:

(gdb) break main
(gdb) run
(gdb) info proc mappings

Key Takeaways from Practical Implementation

Randomization Applied on Load: Each time the program is loaded, its segments are randomized based on the kernel’s ASLR settings.
Tooling: Tools like gdb, pmap, and /proc provide insight into memory layout changes due to ASLR.
Entropy and Effectiveness: The range of randomization depends on the system architecture (32-bit vs. 64-bit) and kernel configuration.

How ASLR Works Across Different Operating Systems

ASLR (Address Space Layout Randomization) is implemented differently across operating systems, and each has its unique approach to memory randomization. Let’s explore how major operating systems (Linux, Windows, macOS) handle ASLR and its impact on security.

1. ASLR in Linux

Implementation Overview

Linux introduced ASLR support in version 2.6.12.
ASLR randomizes the memory layout of the stack, heap, memory mappings (e.g., shared libraries), and the memory address of the executable itself (if compiled as PIE).

Configuring ASLR: Linux allows the configuration of ASLR via /proc/sys/kernel/randomize_va_space:

0: No ASLR (not recommended for security).
1: Conservative randomization (only stack, heap, libraries).
2: Full randomization (stack, heap, libraries, and executable).

Process

Stack Randomization: The address of the stack (used for local variables and function call frames) is randomized.
Heap Randomization: The memory used for dynamic memory allocation is randomized.
Library Randomization: Shared libraries (e.g., libc) are loaded at random addresses, making attacks like return-to-libc harder.
Executable Randomization: If compiled with Position Independent Executable (PIE), the base address of the program itself is randomized.

Security Impact

Full ASLR is enabled by default on modern Linux distributions, and it provides a strong defense against many types of memory corruption exploits (e.g., buffer overflows, return-to-libc).

Tools

Check ASLR Status

cat /proc/sys/kernel/randomize_va_space

pmap: To inspect the memory layout of a running process.

2. ASLR in Windows

Implementation Overview

Windows introduced ASLR in Windows Vista (2007), and it became mandatory in Windows 8 and later versions.
Windows ASLR randomizes the base addresses of executable code, dynamic libraries, heap, and stack.

Key Features of Windows ASLR

Kernel ASLR: Windows uses kernel-level randomization for critical areas (e.g., kernel space and system binaries).
Executable Code Randomization: Similar to Linux’s PIE, Windows randomizes the base address of system processes and user-mode applications.
Dynamic Link Library (DLL) Randomization: Randomizes the load addresses of dynamic libraries used by a process.
Heap Randomization: Windows ASLR randomizes heap addresses for memory allocated dynamically by programs.
Stack Randomization: The stack is randomized in each program execution to prevent attacks like stack smashing.

Security Impact

Windows offers strong protections when ASLR is enabled. By default, ASLR is enabled on newer versions, but users can disable it via settings for compatibility reasons (e.g., some older applications might break with ASLR).

Tools

Check ASLR Status:
You can check the status of ASLR in Windows using the command:

bcdedit | find "noexec"

Process Explorer:
This tool allows you to see memory mappings of a process and observe ASLR effects.

3. ASLR in macOS

Implementation Overview

macOS has supported ASLR since OS X 10.5 Leopard (2007).
macOS includes full randomization of stack, heap, and shared libraries.

Key Features of macOS ASLR

Full Randomization: Like Linux, macOS randomizes the stack, heap, and the addresses of shared libraries and executables.
System Integrity Protection (SIP): In addition to ASLR, SIP further protects critical system files and processes.
Executable and Library Randomization: macOS uses randomization for both the heap and executable images. This includes system libraries as well as user-space applications.

Security Impact

macOS ASLR is robust, but it is not immune to all types of attacks. The system does employ other mechanisms like DEP (Data Execution Prevention) to add an additional layer of security.

Tools

Check ASLR Status:
macOS doesn’t have a simple command like Linux’s /proc/sys for checking ASLR status, but you can use:

sysctl kern.randomize

This shows the current state of randomization (0 = off, 1 = on).

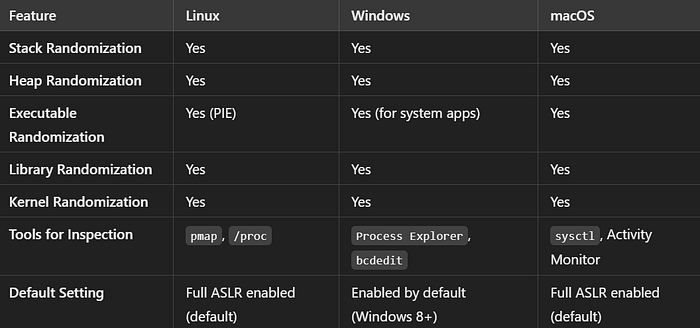

Comparison of ASLR in Linux, Windows, and macOS

The Interaction Between ASLR and Other Security Mechanisms

ASLR works in conjunction with other security mechanisms to provide a comprehensive defense against common memory-related attacks. These mechanisms, such as DEP (Data Execution Prevention), NX (No Execute) bit, Stack Canaries, Control Flow Integrity (CFI), and SEH (Structured Exception Handling) Overwrites, complement ASLR and make it harder for attackers to successfully exploit vulnerabilities.

Data Execution Prevention (DEP) / NX (No Execute) Bit

Overview

DEP (on Windows) and the NX bit (on Linux and macOS) are security features that prevent code from executing in certain areas of memory.
These areas include regions such as the stack and heap, where attackers often place malicious payloads (e.g., shellcode).
ASLR randomizes the location of the stack and heap, while DEP/NX ensures that these areas cannot be executed as code.

How it Works with ASLR

ASLR randomizes the locations of the stack, heap, and libraries. Even if an attacker knows the location of a stack-based buffer overflow or heap-based vulnerability, the NX bit prevents them from executing code placed in those areas.
Example: In a buffer overflow attack, an attacker might try to inject shellcode into the stack. However, if DEP is enabled, the stack is marked as non-executable, meaning the injected shellcode cannot run, even if the attacker knows its address.

Stack Canaries

Overview

Stack canaries are security mechanisms that detect stack buffer overflows by placing a small “canary value” (randomized value) between the return address and the local variables in a function’s stack frame.
If a buffer overflow occurs and overwrites the canary value, the program can detect it and terminate before an attacker can control the return address and gain control of the program’s execution.

How it Works with ASLR

ASLR randomizes the address of the stack, making it harder for an attacker to predict where the canary value is located.
Since the canary value’s position is unpredictable due to ASLR, it becomes much harder for attackers to exploit stack overflows reliably.

Control Flow Integrity (CFI)

Overview

CFI is a security mechanism that ensures that the control flow of a program follows a legitimate path. It works by validating the target addresses of indirect control flow instructions (e.g., function pointers, return addresses).
CFI protects against attacks such as Return-Oriented Programming (ROP) and Jump-Oriented Programming (JOP), where attackers hijack the program’s control flow to execute malicious code without injecting new code.

How it Works with ASLR

ASLR randomizes the addresses of code segments, making it difficult for attackers to predict where certain functions or return addresses will be located.
CFI ensures that even if an attacker tries to redirect control flow (e.g., through a buffer overflow or ROP attack), the redirection will only be to valid, expected locations.

Structured Exception Handling (SEH) Overwrites

Overview

SEH is a feature of Windows that provides a structured way to handle exceptions. Attackers often try to overwrite SEH structures to gain control over the program’s execution.
In an SEH overwrite attack, an attacker overwrites the address of the SEH handler with the address of malicious code.

How it Works with ASLR

ASLR randomizes the locations of SEH handlers, making it more difficult for attackers to predict where to overwrite the SEH structures with their own payloads.
With ASLR enabled, the attacker cannot rely on hardcoded addresses to overwrite SEH records effectively.

Kernel ASLR (KASLR)

Overview

While ASLR primarily focuses on user-space memory randomization, Kernel ASLR (KASLR) adds an additional layer of protection by randomizing the memory layout of the operating system kernel itself.
This makes it more difficult for attackers to exploit kernel vulnerabilities, such as privilege escalation or kernel exploits, by guessing kernel memory locations.

How it Works with ASLR

KASLR randomizes key areas of the kernel’s memory layout, such as system calls, interrupt descriptor tables, and kernel code.
By making these kernel addresses unpredictable, KASLR defends against attacks that rely on knowing the exact location of kernel structures, such as privilege escalation and return-to-kernel attacks.

Impact of ASLR in Real-World Scenarios

The combined strength of ASLR and other mechanisms like DEP/NX, Stack Canaries, CFI, and KASLR drastically improves a system’s resistance to memory-based attacks, such as:

Buffer Overflows: Even if an attacker manages to overwrite a buffer, ASLR makes it difficult for them to predict where to inject malicious code.
Return-Oriented Programming (ROP): Since the addresses of code segments are randomized, attackers can’t easily link gadgets to form a chain to execute arbitrary code.
Privilege Escalation: With kernel and user-space ASLR, it’s much harder to escalate privileges from a user-level application to kernel-level code.

Key Takeaways

DEP/NX prevents the execution of code in certain regions (e.g., stack, heap), complementing ASLR by ensuring injected code cannot run.
Stack Canaries protect against stack buffer overflows, and their effectiveness is heightened when combined with ASLR.
Control Flow Integrity (CFI) prevents attackers from hijacking program control flows, and ASLR’s randomization of function addresses makes it harder for attackers to bypass.
KASLR adds another layer of defense, making kernel exploits significantly more challenging.

Exploiting ASLR Weaknesses

While ASLR is a robust defense mechanism, it is not invincible. Attackers can sometimes bypass ASLR if vulnerabilities are present or if they exploit certain weaknesses in the implementation of ASLR itself. Understanding these weaknesses is crucial for both defenders and attackers, as it helps in designing better security strategies and detecting potential flaws in systems.

Let’s explore how attackers might bypass ASLR and the various techniques they use to exploit weaknesses:

1. Information Leaks (Primitive Leak)

Overview

An information leak occurs when a program inadvertently reveals memory addresses or other critical information that can be used to bypass ASLR. This is the most common technique for bypassing ASLR, as it helps attackers gain knowledge of memory locations that would otherwise be randomized.

Types of Leaks

Format String Vulnerabilities: Format string bugs in programs (e.g., using printf without proper validation) can lead to leaks of memory addresses.
Unintentional Debugging or Logging Information: Sometimes, an application might log or print out memory addresses in debug or error messages.
Heap or Stack Disclosure: If the application returns memory contents from the heap or stack (e.g., by exposing internal buffers), attackers can observe randomized memory addresses.

How Information Leaks Help Attackers

Once an attacker gains access to a memory address (e.g., the address of a specific function, a buffer, or a library), they can use this information to predict the layout of the rest of the memory.
If the attacker knows the location of a function or buffer in memory, they can use this address in their exploit (such as a buffer overflow or return-to-libc attack) to bypass ASLR.

Example Attack:

Consider a vulnerable web server that prints a user’s input to a log file. If an attacker can influence this input and cause an address leak (e.g., via a format string vulnerability like %p), they could obtain the address of critical system libraries or stack frames.

2. Leaking Information via Side Channels

Overview

Even if direct information leaks don’t occur, attackers can use side-channel attacks to gather information about the layout of memory. Side-channel attacks exploit timing differences, cache behaviors, or power consumption to indirectly infer memory addresses.

Techniques

Cache Timing Attacks: In a scenario where an attacker can access memory and cause cache misses, the time taken to load data can reveal whether the attacker has hit the correct memory location.
Branch Prediction Analysis: Modern processors use branch prediction and speculative execution to optimize execution. An attacker might use timing or behavior of speculative execution to learn about memory layout.

How Side Channels Help Attackers

By carefully observing how the system behaves during the execution of certain instructions, an attacker can gain clues about the addresses of various memory regions, effectively bypassing ASLR.

Example Attack:

A web application might expose timing variations when reading from the heap or stack. By monitoring how long certain operations take, an attacker might infer where critical data (such as the return address or function pointers) is located.

3. Brute-Force Attacks

Overview

Brute-force attacks on ASLR are generally considered impractical, as the number of possible random addresses is vast. However, in some situations, particularly with weak randomization or low-entropy environments, an attacker might try a brute-force approach to guess memory addresses.

How it Works

Brute-forcing the Stack/Heap Address: In this type of attack, the attacker attempts to guess the location of the stack, heap, or libraries by testing a large number of possible addresses.
Low-Entropy Situations: Some environments have poor random number generation (e.g., low-entropy sources), which may result in predictable address randomization. Attackers might take advantage of this by testing a smaller address space.

Why it’s Difficult

Modern ASLR implementations use high entropy (large randomization space) and often apply randomization in multiple areas, making brute-forcing impractical.
However, if an attacker has significant control over the application’s input or can trigger certain operations multiple times, brute-forcing might be a feasible attack vector.

4. Use of Memory Corruption Vulnerabilities

Overview

Memory corruption vulnerabilities (such as buffer overflows, use-after-free, and double free) are common techniques used by attackers to exploit ASLR weaknesses.

How it Works with ASLR

While ASLR randomizes memory locations, memory corruption vulnerabilities allow attackers to overwrite critical memory structures (e.g., return addresses, function pointers, etc.), often bypassing ASLR.
Attackers can exploit these vulnerabilities to control the program’s flow or gain arbitrary code execution.

Combining ASLR Bypass with Memory Corruption

If an attacker can control the input of a vulnerable function, they may overwrite critical structures in memory (such as the stack or a function pointer).
In some cases, the attacker can combine ASLR bypass techniques (e.g., information leaks or brute-forcing) with memory corruption to exploit vulnerabilities like heap spraying or return-to-libc attacks.

5. Exploit Mitigations that Enhance ASLR

Despite ASLR weaknesses, many security mitigations can significantly reduce the effectiveness of exploitation techniques:

Stack Smashing Protection (SSP): This protects against stack buffer overflows by detecting when the return address or canary is altered.
Control Flow Integrity (CFI): CFI makes it more difficult for attackers to hijack the control flow, even if they know memory addresses.
SafeStack: This mitigation adds another level of protection for stack-based buffers, making it harder to overwrite return addresses.
Full Randomization: Ensuring all areas (stack, heap, libraries, and executables) are randomized greatly reduces the likelihood of successful attacks.

How can you verify if ASLR is enabled on a system

Linux:

On Linux, you can verify if ASLR is enabled by checking the randomize_va_space file in the /proc/sys/kernel/ directory.

Command:

cat /proc/sys/kernel/randomize_va_space

Output:

0: ASLR is disabled.
1: ASLR is enabled (partial randomization).
2: ASLR is fully enabled (full randomization).

Additionally, on some distributions, the sysctl command can be used:

sysctl kernel.randomize_va_space

Windows:

On Windows, you can check the status of ASLR through the Windows Security Settings.
Open Windows Defender Security Center > App & Browser Control > Exploit Protection > Program Settings.

Alternatively, you can use PowerShell:

Get-ItemProperty "HKLM:\System\CurrentControlSet\Control\Session Manager\Memory Management" -Name "EnableRandomization"

Values:

0: ASLR is off.
1: ASLR is on.

macOS:

On macOS, ASLR is typically enabled by default.

Command to verify:

sysctl kern.randomize

If enabled, the output will show kern.randomize=1.

What tools can attackers use to bypass ASLR?

Information Leak Exploitation:

Memory leaks or information leaks allow attackers to gather knowledge about memory locations. If an attacker can extract memory information (such as a pointer to a function or a stack address), they can use this knowledge to bypass ASLR.

Tools:

gdb (GNU Debugger): Can be used for debugging and inspecting memory, which might leak addresses.
IDA Pro: A disassembler and debugger, which can assist in identifying potential leaks and memory locations.

Brute Force:

If ASLR entropy (randomization range) is low, attackers can attempt a brute force approach where they repeatedly try different memory addresses until they successfully execute their exploit. This technique works best when the randomization isn’t very large (e.g., in systems with low entropy for ASLR).

Tools:

Metasploit: Has modules that exploit low-entropy ASLR by attempting multiple guesses.

Return-Oriented Programming (ROP):

ROP chains allow attackers to execute code at known locations by using existing code fragments in memory. If an attacker can leak a few addresses and bypass ASLR, they can chain ROP gadgets to perform malicious actions.

Tools:

ROPgadget: A tool that helps identify ROP gadgets in a program.
Ropper: Another tool for finding and exploiting ROP gadgets.

Heap Spraying:

Heap spraying involves placing a large number of copies of malicious payloads in the heap to increase the chances of hitting the target address during an attack. This can work around ASLR if the heap isn’t randomized effectively.

Tools:

PyROPS: A Python tool that aids in creating heap-spraying exploits.

What are some examples of ASLR bypasses in the wild?

Several real-world ASLR bypasses have been documented, highlighting the vulnerabilities and limitations of ASLR. Here are a few notable examples:

1.1. Stack Overflow Exploits:

Example: A typical example of an ASLR bypass is when attackers exploit a stack overflow vulnerability in an application. If ASLR is partially implemented or the entropy is low, attackers may guess the stack’s address or use leaked information (e.g., through memory disclosure bugs) to bypass the randomness.
Case: The “Mavellous” stack overflow exploit in 2011 was used to bypass ASLR in some Linux systems. Attackers were able to predict or leak memory addresses, despite ASLR being enabled, due to low entropy.

1.2. Information Leaks and ASLR:

Example: Information leaks occur when the application unintentionally reveals memory addresses or other sensitive data, which can help attackers bypass ASLR. Leaks can occur due to format string vulnerabilities, buffer overflows, or misconfigured input validation.
Case: A web application vulnerability in 2017 allowed attackers to leak memory pointers in the process of processing HTTP requests. This leak enabled the attacker to bypass ASLR and eventually exploit the system.

1.3. Return-Oriented Programming (ROP):

Example: ROP chains allow attackers to bypass ASLR by using existing code in a program to construct malicious operations. In this case, ASLR is bypassed by chaining together small code snippets (gadgets) already loaded into memory.
Case: The “Heartbleed” vulnerability (CVE-2014–0160) was a well-known bug in OpenSSL that allowed attackers to extract memory data from a server, potentially leaking addresses of critical libraries. This leak, combined with ROP techniques, could bypass ASLR in some cases.

1.4. “JIT spraying” in Web Browsers:

Example: Just-In-Time (JIT) compilers are often used in browsers for JavaScript execution. Attackers have leveraged JIT spraying techniques to bypass ASLR and execute shellcode by leveraging predictable memory locations of compiled code.
Case: In 2014, a Safari browser vulnerability (CVE-2014–1769) was exploited through JIT spraying, where an attacker could bypass ASLR and execute arbitrary code remotely.

1.5. Attack on 32-bit Systems:

Example: While 64-bit systems have a larger address space, 32-bit systems are more vulnerable to ASLR bypasses due to their smaller entropy. Attackers exploit this by brute-forcing the address space.
Case: A Windows XP vulnerability in 2012 was exploited through brute-forcing techniques against its ASLR implementation on 32-bit systems, allowing the attacker to bypass the randomness and launch an exploit.

Deep Dive into Practically Exploiting ASLR weaknesses

Understanding Buffer Overflow Exploitation

Buffer overflow exploits involve overwriting a buffer in memory to control the flow of a program. When ASLR is present, it randomizes the memory layout of the process, making it harder for an attacker to predict the location of critical areas like the stack, heap, or libraries. However, ASLR weaknesses or partial ASLR can still be bypassed by attackers using different techniques.

Let’s go over how attackers exploit buffer overflows with ASLR in place, and then show a practical example.

Attack Approach: Exploiting Buffer Overflow with ASLR

Steps an Attacker Takes to Exploit Buffer Overflow with ASLR:

Identifying the Vulnerability:

The first step for an attacker is finding a buffer overflow vulnerability. This often occurs in applications that don’t validate user input, like when reading data into a fixed-size buffer.
For example, reading data from an input function like gets(), which doesn't check the size of the input, can lead to a buffer overflow.

Understanding ASLR:

When ASLR is enabled, the attacker cannot predict the memory addresses of important structures like the stack, heap, and libraries.
This means that the attacker can’t directly overwrite return addresses or function pointers because the memory locations are randomized.

Finding Ways to Bypass ASLR:

Information leakage: Attackers may use information leakage to reveal some memory addresses and partially bypass ASLR. This could come from a vulnerable application that discloses addresses in error messages, logs, or even through network traffic.
Brute-forcing: If the entropy of ASLR is low (e.g., on a 32-bit system with limited address space), attackers can try to brute-force possible memory addresses.
Partial ASLR: Some systems implement partial ASLR, which randomizes only parts of the memory (e.g., only the stack but not the heap). This makes it easier for attackers to predict certain parts of memory.

Injecting Malicious Code:

The attacker typically exploits the buffer overflow by overwriting a return address on the stack, which causes the program to jump to the attacker’s malicious code.
With ASLR in place, the attacker may not know the exact address of their payload in memory, so they might:
Use NOP sleds (No Operation instructions) to increase the chances of hitting the correct location of their shellcode in memory.
Leverage ROP (Return-Oriented Programming) techniques to exploit existing code snippets in memory without needing to inject new shellcode.

Executing the Exploit:

Once the attacker has identified and manipulated the stack in a way that causes the program to jump to their malicious code, the exploit is triggered.

Practical Example: Buffer Overflow Exploitation with ASLR

For this practical scenario, let’s assume you have a vulnerable C program that accepts user input without bounds checking, leading to a buffer overflow. We’ll use a simple example of a program vulnerable to buffer overflow.

Vulnerable Program (C):

#include <stdio.h>
#include <string.h>

void secret_function() {
    printf("You've successfully exploited the buffer overflow!\n");
}

void vulnerable_function(char *input) {
    char buffer[100];
    strcpy(buffer, input);  // Vulnerable to buffer overflow
}

int main(int argc, char *argv[]) {
    if (argc < 2) {
        printf("Usage: %s <input>\n", argv[0]);
        return 1;
    }
    vulnerable_function(argv[1]);
    return 0;
}

The vulnerable_function() uses strcpy() to copy user input into a fixed-size buffer without bounds checking. This creates a buffer overflow vulnerability.

Simulating Buffer Overflow with ASLR:

Compile the Program with ASLR:

To test this on a system with ASLR enabled, you can compile the program normally

gcc -fno-stack-protector -z execstack -o vuln_program vuln_program.c

The -fno-stack-protector disables stack protection, and -z execstack allows execution of the stack (this simulates a real-world scenario where these protections might not be present).

Using Information Leakage or Brute Forcing (ASLR Bypass):

ASLR can be bypassed using information leakage, like revealing a function pointer or stack address.
Brute forcing involves guessing the randomized addresses. This is easier when the system has weak ASLR (e.g., 32-bit systems or low entropy).

Here, let’s assume the stack address is random, and we need to guess it.

Overflowing the Buffer:

Let’s create an input string that will overflow the buffer and overwrite the return address to redirect the control flow to secret_function().
We know that the buffer size is 100 bytes, and the return address is 4 bytes away from the buffer (on a 32-bit system).

To exploit the vulnerability, we create a payload that:

Fills the buffer with 100 characters (to overflow the stack).
Overwrites the return address with the address of secret_function().

First, find the address of secret_function():

gdb vuln_program

In GDB, use info address secret_function to find the memory address of secret_function().

Crafting the Exploit Payload:

Assuming the address of secret_function() is 0x080484b6:

python -c "print('A' * 100 + '\xb6\x84\x04\x08')" > payload.txt

This payload fills the buffer with 100 As, followed by the 4-byte address of secret_function().

Running the Exploit:

Now, run the program with the crafted payload:

./vuln_program $(cat payload.txt)

If successful, the program will jump to secret_function(), and you'll see:

You've successfully exploited the buffer overflow!

Consequences of Exploiting Buffer Overflow with ASLR:

Privilege Escalation: Exploiting a buffer overflow on a system with ASLR could lead to privilege escalation if the attacker gains control of a process running with higher privileges (e.g., root or system-level).
Code Execution: The primary goal of a buffer overflow attack is to execute arbitrary code. By overwriting the return address or function pointers, the attacker can redirect program execution to malicious code.
Denial of Service (DoS): If the attacker cannot successfully exploit the vulnerability, they could cause the program to crash (segmentation fault), resulting in a DoS condition.

Summary of Attack Workflow:

Find a buffer overflow vulnerability in the code.
Use information leakage or brute-forcing to bypass ASLR (if it is weak).
Overflow the buffer, overwrite the return address, and point to the attacker’s code.
Execute the exploit, gaining control of the program’s execution flow.

Now, let’s continue with Return-Oriented Programming (ROP), which is a more advanced technique used to bypass ASLR and other security mechanisms like DEP (Data Execution Prevention) when exploiting buffer overflow vulnerabilities. This is crucial for understanding how attackers maneuver around protections and still achieve code execution.

Return-Oriented Programming (ROP) to Bypass ASLR

What is ROP?

Return-Oriented Programming (ROP) is a technique that allows attackers to execute arbitrary code by chaining together small snippets of existing code in memory. These snippets, or gadgets, typically end in a return instruction. By manipulating the stack and redirecting the program flow to these gadgets, attackers can perform arbitrary operations.

ROP is particularly useful for bypassing Data Execution Prevention (DEP), which prevents code execution from certain memory regions (e.g., the stack). Since ROP reuses existing executable code, it doesn’t require injecting new code into the process, allowing attackers to execute payloads even with DEP in place.

How ROP Works with ASLR:

When ASLR is enabled, the addresses of libraries, functions, and stack frames are randomized, making it difficult for attackers to predict where their gadgets are located. However, ROP can still be effective because:

ROP doesn’t require knowing the exact memory location of the payload. Instead, it relies on finding the addresses of gadgets within libraries already loaded into memory.
If an attacker can identify a few gadgets, they can chain them together and achieve arbitrary execution. This chaining can be done through information leaks or brute-forcing to bypass the randomization.

Steps Involved in a ROP Attack:

Find a Buffer Overflow Vulnerability:

Just like with a traditional buffer overflow, the attacker needs to find a vulnerable program that allows them to overflow a buffer and overwrite the return address.

Leak or Guess Memory Layout:

To bypass ASLR, the attacker might rely on an information leak (e.g., printing memory addresses) or guess the addresses based on the entropy and size of the address space.
This information helps the attacker determine the locations of gadgets in memory.

Locate ROP Gadgets:

The attacker uses tools like ROPgadget, ROPgadget.py, or Radare2 to find gadgets in libraries loaded into memory. These gadgets are small pieces of executable code (usually ending in ret).
Gadgets can be combined in a sequence to perform a complex attack, such as calling system functions, interacting with file descriptors, or manipulating memory.

Example of a ROP gadget:

0x080484b6: pop eax ; ret
0x080484b7: xor eax, eax ; ret
0x080484b8: pop ebx ; ret

This gadget can be used to clear the eax register and prepare for further operations.

Craft a Payload:

The attacker crafts a payload that consists of:
Padding (filling the buffer until the return address is reached).
A gadget chain: A sequence of ROP gadgets that will execute when the return address is hijacked.
A final system call or function pointer to trigger the exploit (e.g., invoking system() to execute a shell command).

Execute the Exploit:

The attacker triggers the buffer overflow, causing the program to jump to the first gadget in the chain.
Each gadget performs a small operation (e.g., manipulating registers, calling functions) and then returns control to the next gadget, ultimately executing the payload.

Example: ROP Chain to Execute Code (Bypassing ASLR)

Let’s consider an example of a vulnerable program and how an attacker might craft a ROP chain.

Vulnerable Program (C):

#include <stdio.h>
#include <string.h>

void secret_function() {
    printf("Exploit successful! You've bypassed ASLR!\n");
    system("/bin/sh");  // Gives attacker a shell
}

void vulnerable_function(char *input) {
    char buffer[100];
    strcpy(buffer, input);  // Vulnerable to buffer overflow
}

int main(int argc, char *argv[]) {
    if (argc < 2) {
        printf("Usage: %s <input>\n", argv[0]);
        return 1;
    }
    vulnerable_function(argv[1]);
    return 0;
}

This program has the same vulnerability as before but now uses the system("/bin/sh") function to spawn a shell, allowing the attacker to take control of the system.

Steps to Create the ROP Payload

Identify the Buffer Overflow:

The attacker notices that strcpy() does not perform bounds checking, leading to a buffer overflow.

Leak Information (or Brute Force):

The attacker can use an information leak (such as printing the stack pointer) or guess the stack layout to learn the address of secret_function().

Finding ROP Gadgets:

Using a tool like ROPgadget, the attacker finds gadgets in the loaded libraries (e.g., libc) to build the ROP chain.

Example gadget sequence:

pop eax; ret
xor eax, eax; ret
pop ebx; ret
system; ret

Craft the ROP Chain:

The attacker constructs a payload with:
Padding (A * 100 bytes to fill the buffer).
The ROP gadgets to set up the registers and invoke system("/bin/sh").

The payload might look like:

python -c "print('A' * 100 + '\xB6\x84\x04\x08' + '\xB7\x84\x04\x08' + ... )" > payload.txt

Where \xB6\x84\x04\x08 is the address of the pop eax; ret gadget, and \xB7\x84\x04\x08 is the next gadget, etc.

Run the Exploit:

The attacker runs the vulnerable program with the crafted input, triggering the ROP chain and ultimately executing a shell (/bin/sh).

./vuln_program $(cat payload.txt)

If successful, the attacker will gain a shell on the system.

Consequences of ROP in the Context of ASLR:

Bypassing ASLR: ROP allows attackers to execute code without knowing the exact memory layout, bypassing ASLR.
Privilege Escalation: If the vulnerable program is running with elevated privileges, an attacker can gain root or system-level access.
Full Control Over the System: Since ROP can manipulate registers, memory, and invoke system calls, the attacker could perform any action that the program is capable of, including executing arbitrary code.

Summary of ROP Attack Workflow:

Find a buffer overflow vulnerability.
Leak or guess memory addresses to find useful ROP gadgets.
Construct a ROP chain using gadgets to perform useful operations (e.g., system calls).
Trigger the buffer overflow and hijack the control flow to execute the ROP chain.
Exploit the system (e.g., gaining a shell).

How have OS vendors improved ASLR over the years in response to bypass techniques?

Operating systems have evolved their ASLR implementations over time to counteract exploitation techniques and improve their security. Here are some notable improvements made by major OS vendors:

Enhanced Entropy and Randomization (Linux and macOS):

Linux:

In response to attacks on low-entropy ASLR (e.g., 32-bit systems), Linux introduced better randomization and increased the randomness of heap, stack, and libraries.
The /proc/sys/kernel/randomize_va_space file allows full randomization with higher entropy for processes. Newer versions of Linux use 64-bit addresses for better address space and improved randomness.

macOS:

Apple made significant improvements by enhancing the randomization of process memory, including the randomization of heap and stack addresses. macOS was one of the first operating systems to employ full randomization on 64-bit systems, drastically increasing the difficulty of successful attacks against ASLR.

Full ASLR on Windows:

Windows:

Windows 8 and later versions introduced full ASLR, enabling randomization of the base addresses for system libraries and executable files, which were previously predictable.
Windows 10 introduced additional protections like Control Flow Guard (CFG) to complement ASLR, helping protect against return-oriented programming (ROP) attacks, especially in combination with Data Execution Prevention (DEP).

Heap Randomization:

Linux added heap randomization starting from Linux kernel 4.8, which randomized the heap’s address space, previously a weak point for ASLR. This made it much harder for attackers to predict and exploit heap memory.

Randomizing the Stack:

Both Linux and Windows have improved stack randomization in response to attacks targeting stack-based buffer overflows. Full randomization makes it much more difficult for attackers to predict stack locations.

Protection for Older Architectures:

Both Linux and Windows have worked to improve ASLR on 32-bit architectures, with Windows making it mandatory for all 64-bit apps in Windows 8 and later, and Linux using higher entropy for the randomization process.
Windows 7 introduced support for ASLR in 32-bit executables, which was a significant improvement over older versions that only supported ASLR in 64-bit executables.

Address Space Layout Randomization in Containers:

For containerized environments like Docker, Linux introduced containerized ASLR, where each container gets its own isolated address space. This is an additional layer of security when deploying applications in containerized environments.

These improvements reflect the continuous evolution of ASLR to counteract sophisticated attack techniques and enhance system security.

What are the future advancements in ASLR?

As attackers continue to develop new ways to bypass ASLR, operating systems and security researchers are constantly working on enhancing its capabilities. Here are some potential future advancements in ASLR:

1.1. Increased Entropy and Randomization:

Future advancements will likely focus on increasing the entropy (i.e., the randomness) involved in ASLR, especially on 32-bit systems and legacy systems that have fewer possible memory addresses. This would make it more challenging for attackers to predict the layout of memory and launch successful attacks.
Improvements to stack, heap, and libraries randomization will provide better protection. Some experimental approaches suggest randomizing more memory regions, including the code segments of a program, which could further limit exploitation opportunities.

1.2. Hybrid Memory Protection Models:

Future ASLR implementations may combine ASLR with other memory protection mechanisms, such as Control Flow Integrity (CFI), which checks if program control flows are valid, or Control Flow Guard (CFG), which helps prevent return-oriented programming (ROP) attacks.
Hybrid models that use multiple security layers in tandem could offer stronger protections against complex attack vectors.

1.3. Per-Process ASLR Customization:

Future implementations may allow for per-process customization of ASLR randomness, where different processes can be randomized based on their risk profile. For example, more critical or sensitive applications could have higher randomness applied to their memory layout than less important processes.

1.4. Fine-Grained Randomization:

Rather than randomizing only major components like the stack, heap, or libraries, fine-grained randomization will likely be introduced. This means even smaller elements, such as individual function pointers, global variables, and buffers could be randomized independently to increase unpredictability and security.

1.5. Better ASLR for Virtualized and Cloud Environments:

In virtualized environments (e.g., virtual machines, containers), there could be more robust implementations of ASLR to handle the unique challenges of these environments. ASLR could become more integrated into the hypervisor layer to enhance isolation between virtual instances and prevent attacks that span multiple containers or virtual machines.

1.6. Real-Time Adaptive ASLR:

Future OS versions could have adaptive ASLR that changes the randomization during runtime, based on certain patterns of behavior. For example, if an attack is detected, the system could adjust the randomization in real time, adding another layer of unpredictability for attackers trying to bypass ASLR.

What are some alternatives or complementary techniques to ASLR?

While ASLR is an important defense mechanism, it is often used in combination with other techniques to provide more robust security. Here are some alternatives or complementary techniques to ASLR:

Data Execution Prevention (DEP) / No-eXecute (NX) Bit:

DEP (also called NX bit) is a security feature that marks parts of memory as non-executable. This means that even if an attacker can inject malicious code into a memory region, it cannot be executed.
When used in conjunction with ASLR, DEP adds another layer of protection by preventing buffer overflow exploits from executing injected code, even if the attacker knows the memory address.

Control Flow Integrity (CFI):

CFI ensures that the control flow of a program follows a valid path, preventing attacks like return-oriented programming (ROP), which relies on manipulating the program’s control flow.
CFI and ASLR together can prevent the attacker from both predicting memory addresses (via ASLR) and abusing control flow (via CFI).

Stack Canaries:

Stack canaries are values placed on the stack to detect and prevent buffer overflow attacks. If the canary value is altered due to a buffer overflow, the program will terminate before the attack can succeed.
Stack canaries provide an additional defense by preventing attackers from modifying return addresses even when ASLR randomizes memory addresses.

Address Space Isolation:

Techniques such as sandboxing or virtual machine-based isolation create isolated environments where malicious programs cannot access the broader memory or system resources. This limits the impact of successful attacks, even if ASLR is bypassed.
For example, browser sandboxes or containerized environments can use ASLR to randomize process memory and combine it with isolation to prevent exploits from spreading beyond the vulnerable process.

Integrity Checks (e.g., Control Flow Guard — CFG):

Control Flow Guard (CFG) is a security feature introduced by Microsoft that validates the control flow of an application at runtime. It works by ensuring that function pointers point to valid destinations.
CFG prevents the exploitation of memory corruption vulnerabilities that can bypass ASLR, especially when combined with return-oriented programming (ROP) or jump-oriented programming (JOP) attacks.

Kernel-Address Space Layout Randomization (KASLR):

KASLR is an extension of ASLR designed specifically to randomize the kernel’s memory layout, making it harder for attackers to exploit kernel-level vulnerabilities.
KASLR helps prevent exploits that target kernel space, including privilege escalation attacks that attempt to overwrite kernel pointers.

Immutable Memory Protections:

Operating systems are implementing protections that make certain memory areas immutable during runtime. This prevents attackers from altering critical sections of memory, such as function pointers or return addresses, which could lead to privilege escalation.

Control-Flow Locking:

This is an advanced technique used to lock down valid control flows in applications, preventing attackers from reusing existing code (ROP) or inserting their own code into the program’s flow. It is intended to be used alongside ASLR to strengthen the overall defense.

#ASLR #Heap #BufferOverflow #ROPGadgets #ROPChains

Demystifying ASLR: Understanding, Exploiting, and Defending Against Memory Randomization

How It Works:

Low-Level Technical Details

Why Is ASLR Important?

Step 1: Running the Process

Step 2: Observing Randomized Memory Segments

Key Observations

Step 3: Running the Process Again

Understanding ASLR Randomization

Run 1 (pmap output):

Run 2 (pmap output):

Differences Observed

Why This Matters for Security

Low-Level Implementation of ASLR

1. Program Loader

2. Role of the Kernel

3. Position-Independent Code (PIC)

4. Virtual Memory Layout

5. Randomization Granularity

How Randomization Happens

Practical Example

Inspecting Memory Randomization in Linux

Key Observations

Debugging Randomization

Key Takeaways from Practical Implementation

How ASLR Works Across Different Operating Systems

1. ASLR in Linux

Implementation Overview

Process

Security Impact

Tools

2. ASLR in Windows

Implementation Overview

Key Features of Windows ASLR

Security Impact

Tools

3. ASLR in macOS

Implementation Overview

Key Features of macOS ASLR

Security Impact

Tools

Comparison of ASLR in Linux, Windows, and macOS

The Interaction Between ASLR and Other Security Mechanisms

Data Execution Prevention (DEP) / NX (No Execute) Bit

Overview

How it Works with ASLR

Stack Canaries

Overview

How it Works with ASLR

Control Flow Integrity (CFI)

Overview

How it Works with ASLR

Structured Exception Handling (SEH) Overwrites

Overview

How it Works with ASLR

Kernel ASLR (KASLR)

Overview

How it Works with ASLR

Impact of ASLR in Real-World Scenarios

Exploiting ASLR Weaknesses

1. Information Leaks (Primitive Leak)

Overview

Types of Leaks

How Information Leaks Help Attackers

Example Attack:

2. Leaking Information via Side Channels

Overview

Techniques

How Side Channels Help Attackers

Example Attack:

3. Brute-Force Attacks

Overview

How it Works

Why it’s Difficult

4. Use of Memory Corruption Vulnerabilities

Overview

How it Works with ASLR

Combining ASLR Bypass with Memory Corruption

5. Exploit Mitigations that Enhance ASLR

How can you verify if ASLR is enabled on a system

Run 1 (`pmap` output):

Run 2 (`pmap` output):
